Steam roller D376 kit
Pickup currently not available
The Wilesco steam roller Old Smoky kit (black/brass)
The Wilesco Old Smoky steam roller kit D376 (black/brass) is another color variation in black and brass. This radiant model will captivate every model enthusiast and collector.

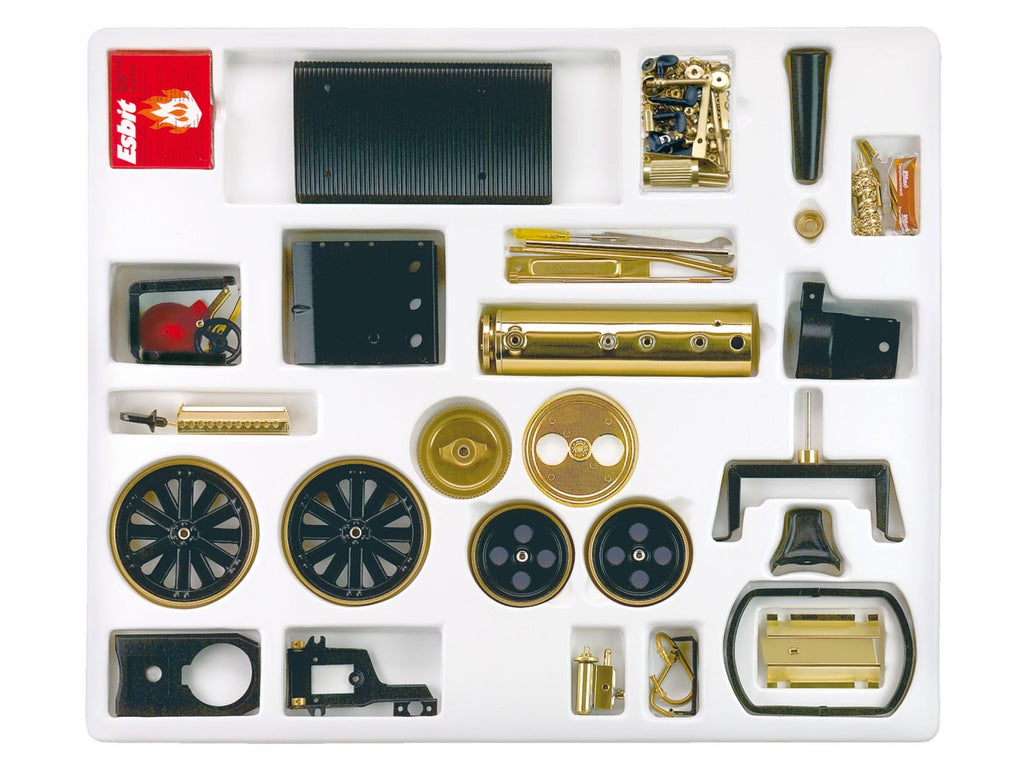

This D376 kit has the same features as the pre-assembled steam roller. With this kit, you'll experience firsthand how steam engines are constructed and work step by step on combining all the individual parts. The kit is easy to assemble even for inexperienced steam engine enthusiasts, thanks to the detailed, richly illustrated assembly instructions. The approximate time required to assemble the steam roller is three to four hours. It's best if assembly can be carried out without interruption. All individual parts of the steam tractor were subjected to careful quality control before leaving our steam engine factory.
We have been producing the Old Smoky steam roller in this form since the mid-1960s; it was the first mobile model steam engine in the Wilesco range.
This model of a mobile steam engine was modeled after a widely used steam roller that was used in road construction until the 1950s.
Mobile and stationary steam roller

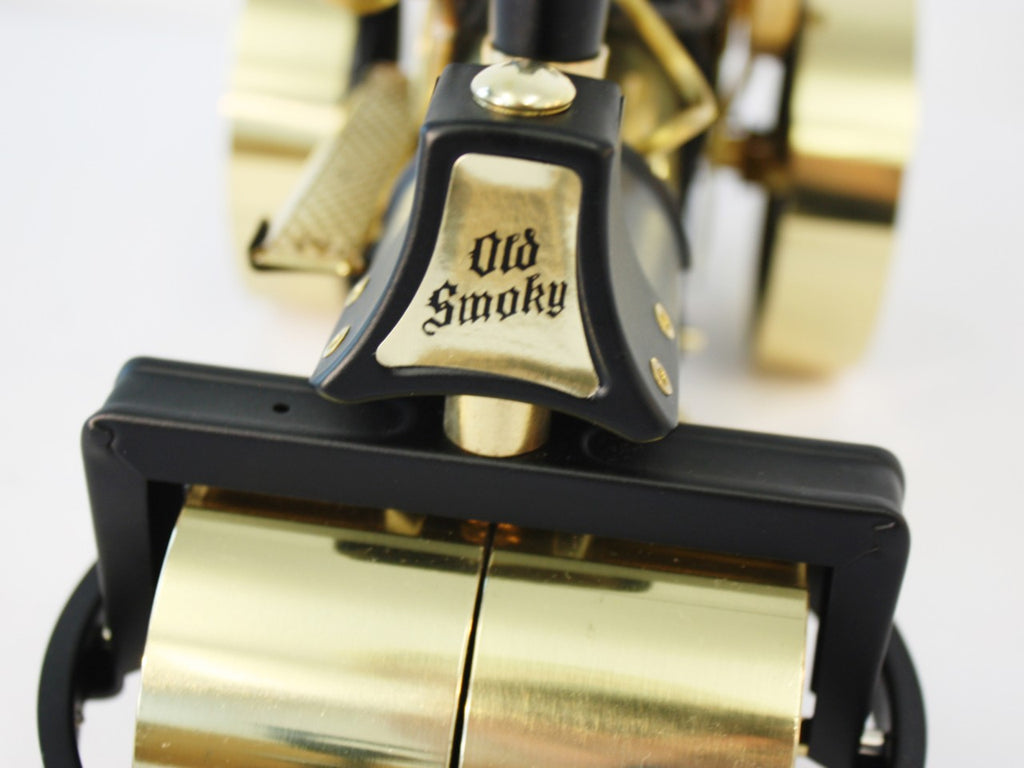

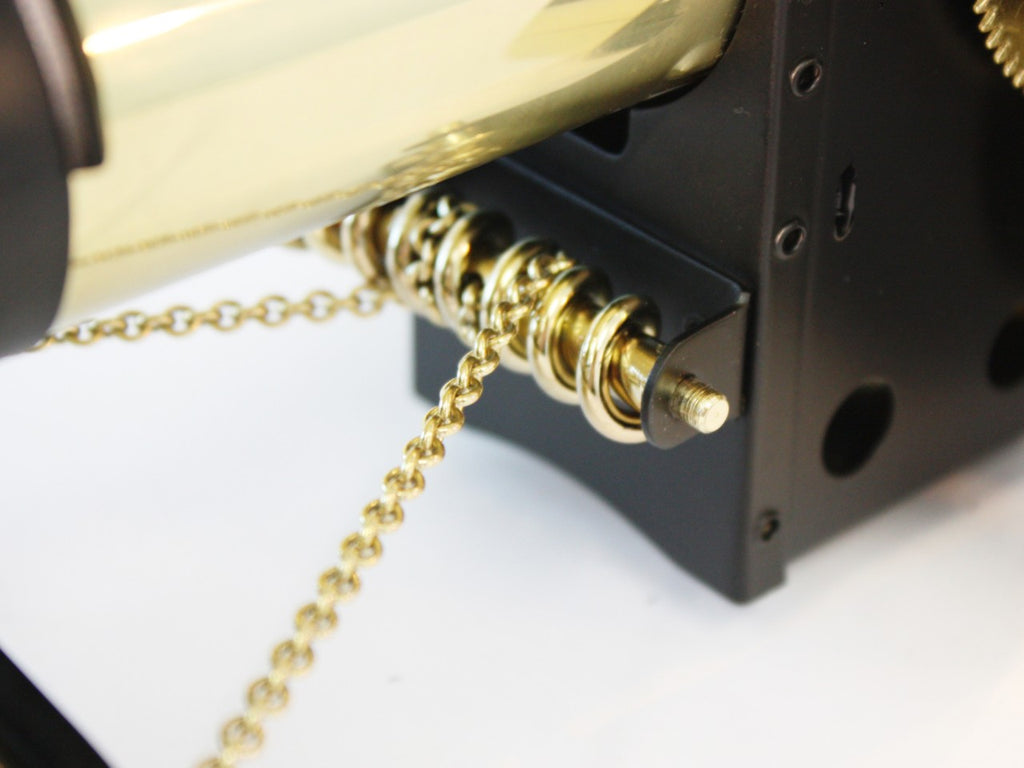

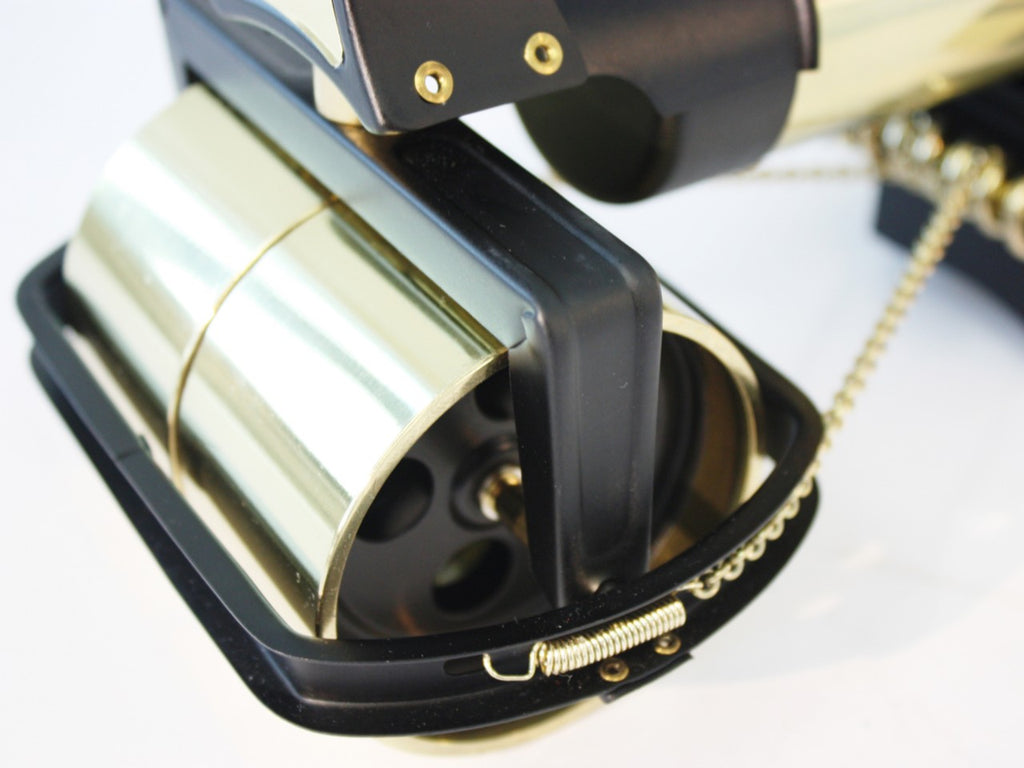

A catwalk, chain steering, and gear coupling are standard features of our Old Smoky. The coupling—operated by a rod to the left of the driver's cab—allows the steam roller to also be operated as a stationary steam engine. With its 230 cc boiler, the Old Smoky is powerful enough to pull accessories in mobile operation as well as drive models in stationary operation. The aluminum roller wheels of this steam roller are polished and painted.
For indoor and outdoor use

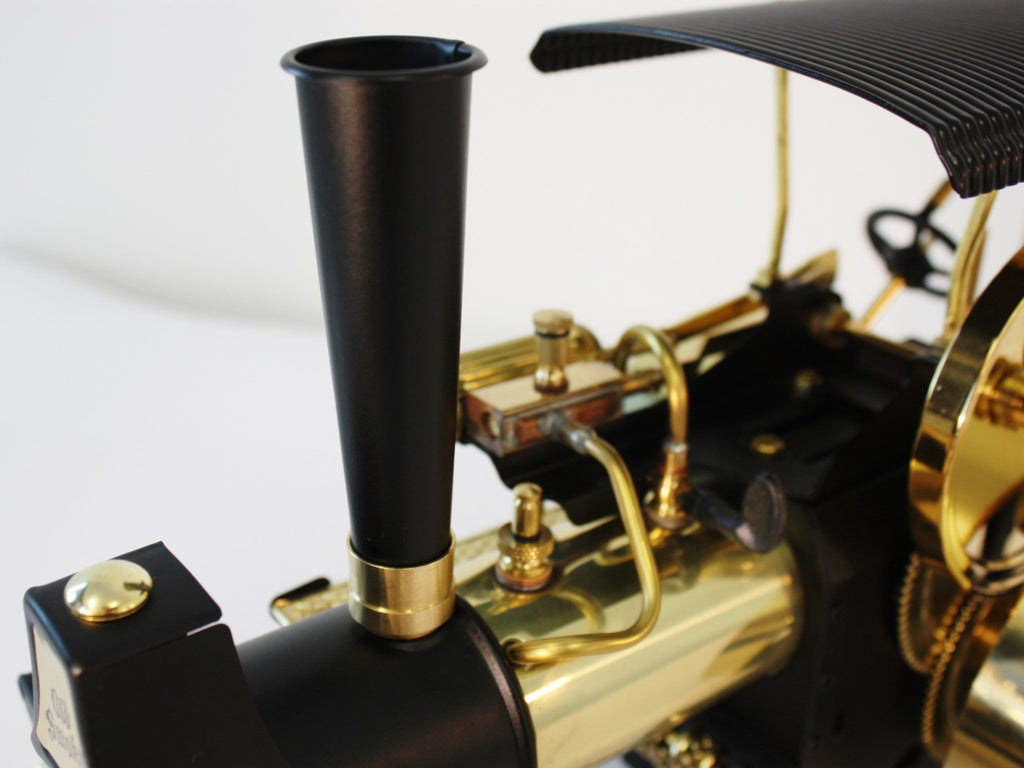

Our Wilesco D376 steam roller is suitable for both outdoor and indoor use. Since the Wilesco D365 has a bidirectional flywheel, it can drive forward and backward, and is steered by a timing chain. During operation, the steam roller's chimney emits authentic smoke. Running time with one load of original Witabs solid fuel is approximately 15 minutes. Running time may be slightly shorter when using other solid fuel brands.
A wonderful and highly recommended souvenir of old times for all steam engine fans.
This steam engine comes with 2 WITABS dry fuels, but please don't forget to refuel your D365 for optimal steaming pleasure.
Performance index
Performance Index 5
Base dimensions
further information
Spare parts
- 01843 Accessories complete in the bag
- 01661 Boiler with spring safety valve including glass
- 01578 Burner slide brass, handle black 80 mm
- 01766 Complete unit
- 01794 Coupling, brass
- 01759 Crank disc with bolt screw
- 01730 Cylinder complete, brass
- 01978 Cylinder cover
- 01462 Drive gear with axle
- 01889 Eccentric disc small
- 01882 Fireplace base, brass
- 01684 Flywheel brass, with axle
- 01716 Front wheel 70 mm, black/brass
- 01465 Gear with driver, brass
- 01467 Gear, large with pinion, brass
- 01629 Grub screws for line rollers (1 bag = 10 pieces)
- 01627 Line roller 14 mm
- 01628 Line roller, brass, D=14 mm
- 01545 Metal ring for water level glass D=27 mm (brass)
- 01876 Mounting cap for 4 mm axle, brass
- 01879 Mounting cap for 5 mm axle, brass
- 01502 Oiler attachment complete with screw M4, brass bare
- 01748 Piston connecting rod with screw
- 01745 Piston, diameter 9 mm
- 01715 Rear wheel 100 mm, black/brass
- 01697 Roof complete, black
- 01520 Seals assortment M3 - M6
- 01743 Slide rod with screw, diameter 5 mm - from 1990
- 01750 Slider connecting rod with screw
- 01463 Small drive gear for flywheel axle
- 01514 Spring safety valve, from 1990 M 6 x 0.75 fine thread, brass
- 01819 Steam pipe, 2-part, brass
- 01526 Steam whistle M 5
- 01798 Steering wheel complete with column, black
- 01799 Steering wheel, black
- 01720 Stopcock, brass with plastic lever
- 01796 Tension spring for steering, brass
- 01540 Water level glass 27 mm with screws, nuts and seals
- 01790 Worm with chain and gear ring (brass) with tension spring
- 01567 fireplace, black
