Steam roller D375 kit
Pickup currently not available

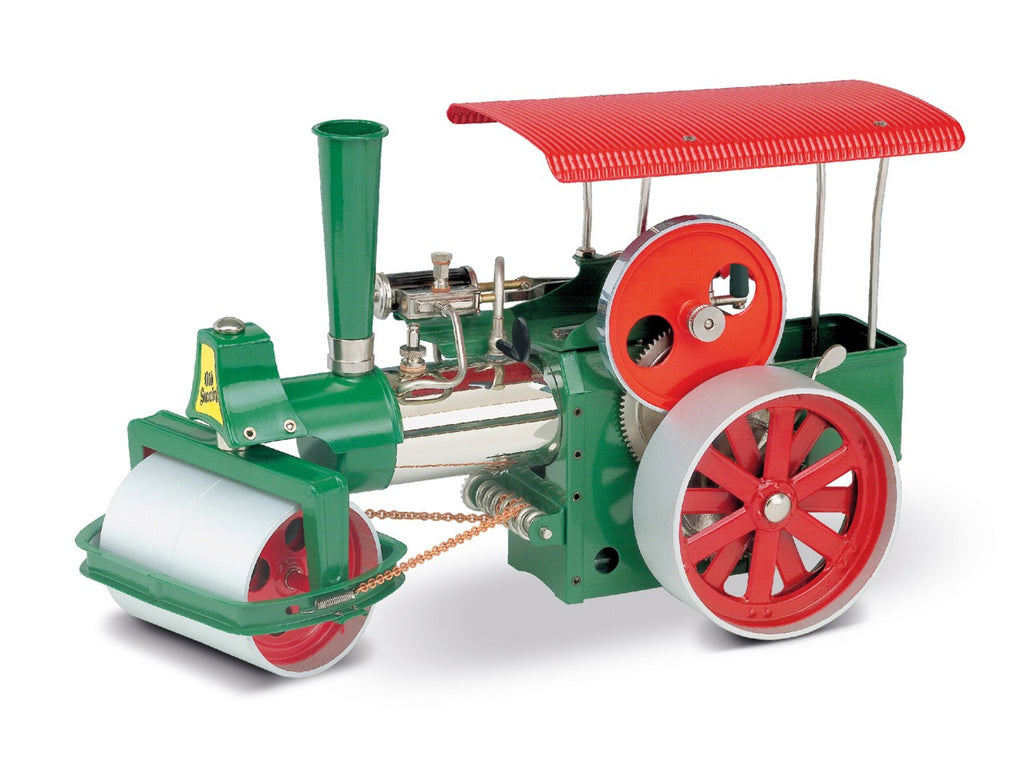

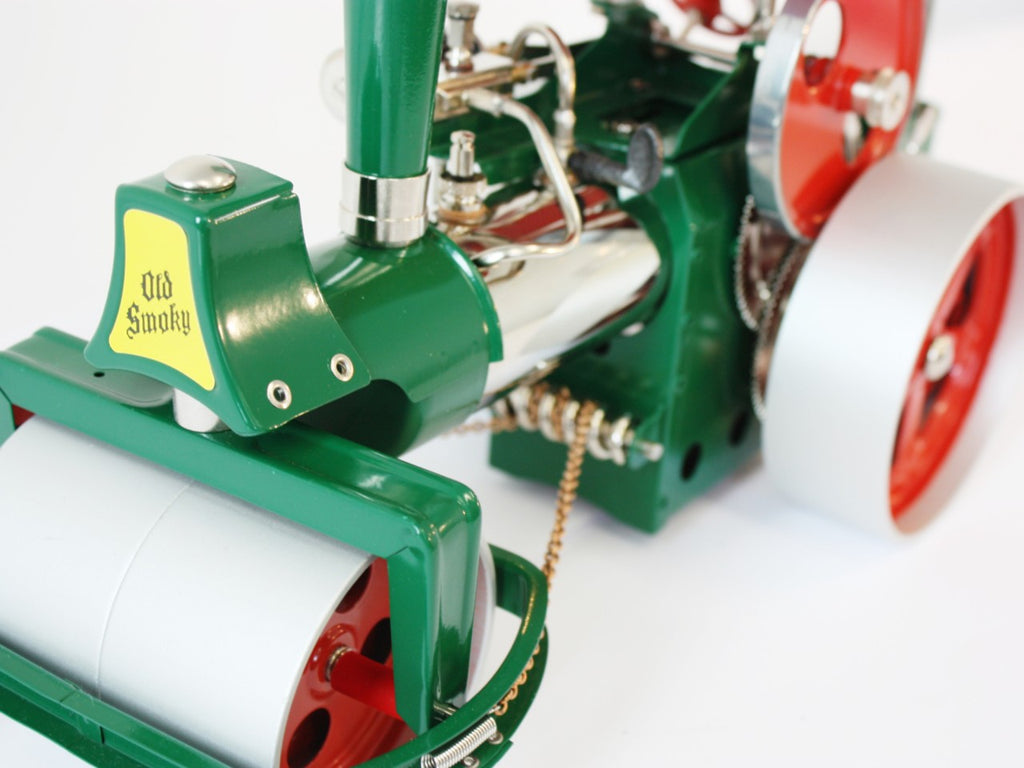

The Wilesco steam roller Old Smoky D375 as a kit

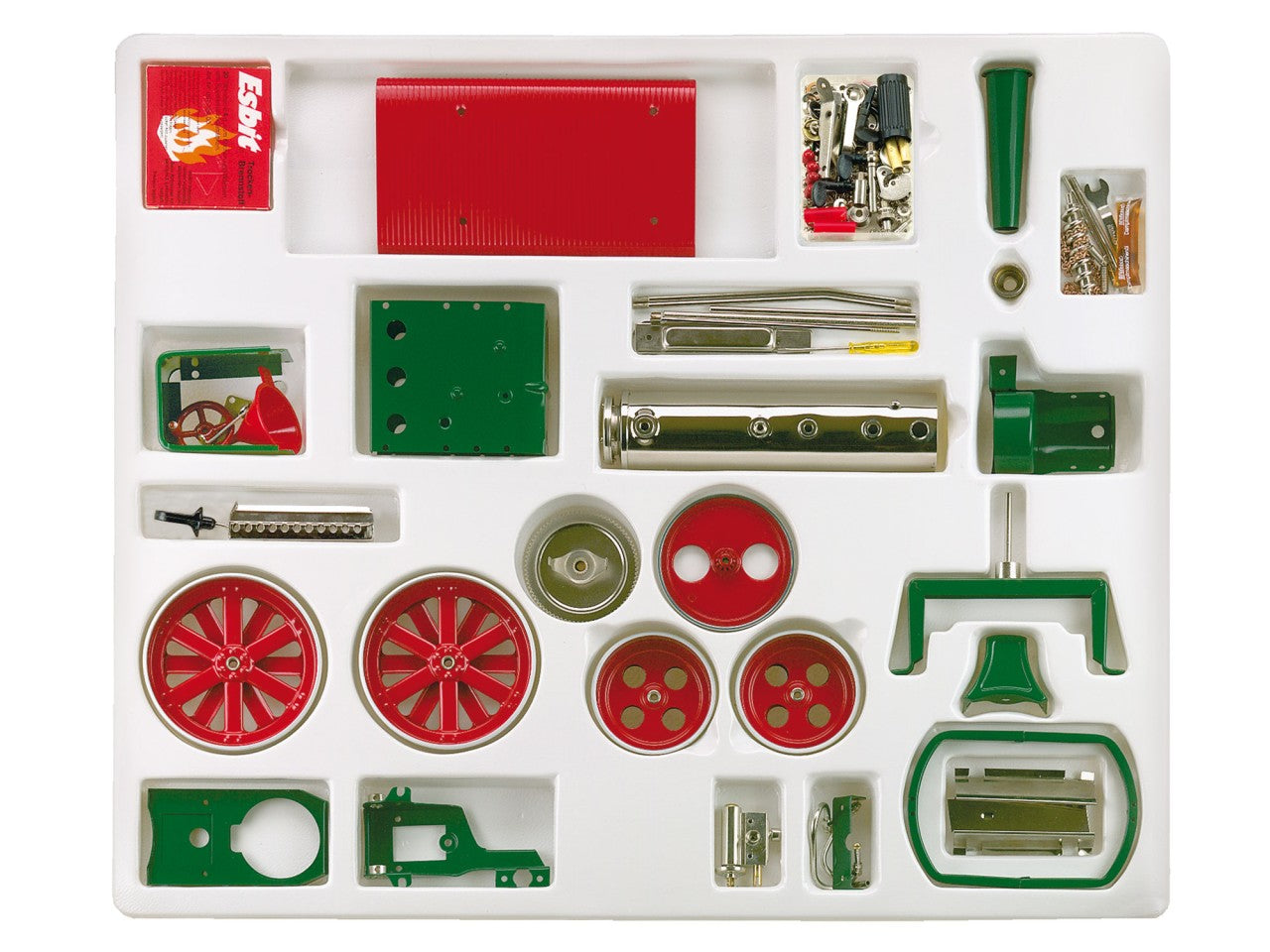

This D375 kit has the same features as the pre-assembled steam roller. With this kit, you'll experience firsthand how steam engines are constructed and work step by step on combining all the individual parts. The kit is easy to assemble even for inexperienced steam engine enthusiasts, thanks to the detailed, richly illustrated assembly instructions. The approximate time required to assemble the steam roller is three to four hours. It's best if assembly can be carried out without interruption. All individual parts of the steam tractor were subjected to careful quality control before leaving our steam engine factory.
Please note: The kit for our Old Smoky steamroller is not available in the color combination black/nickel!
We have been producing the Old Smoky steam roller in this form since the mid-1960s; it was the first mobile model steam engine in the Wilesco range.
This model of a mobile steam engine was modeled after a widely used steam roller that was used in road construction until the 1950s.
The color scheme hasn't changed since the 60s!
Mobile and stationary steam roller

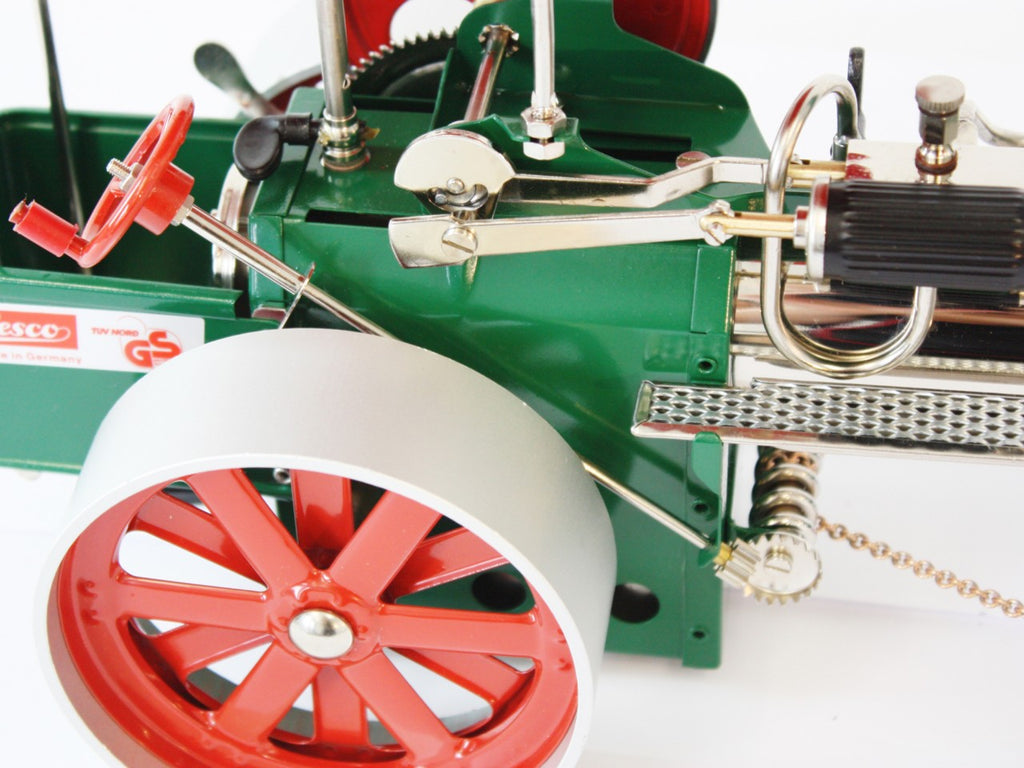

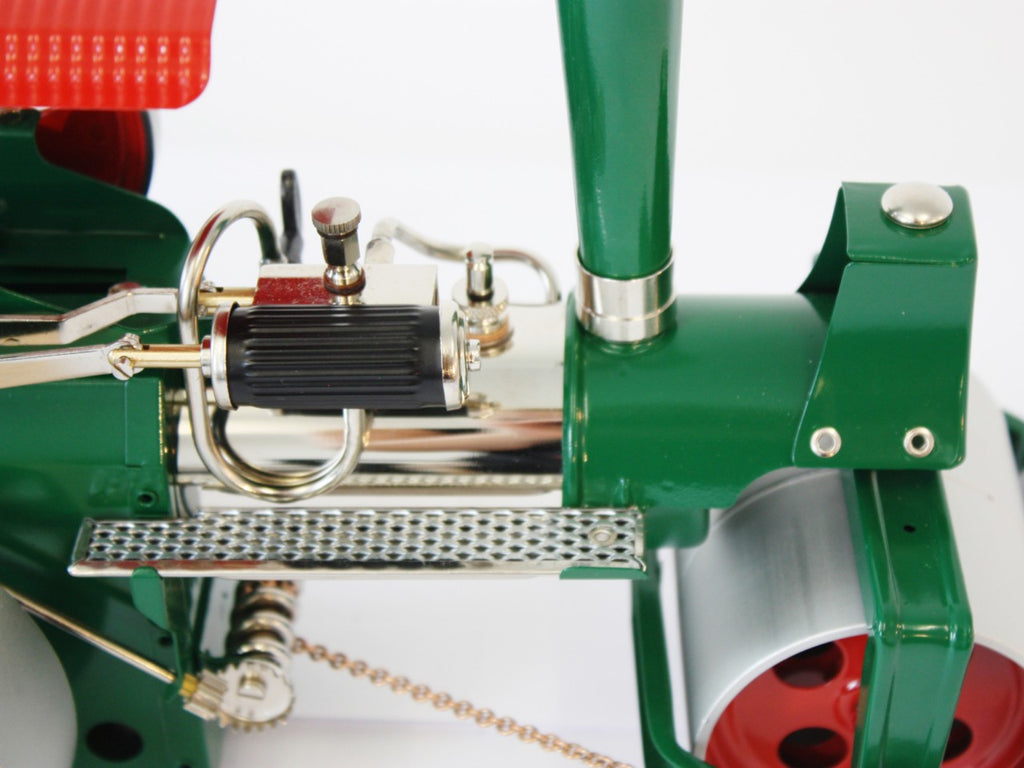

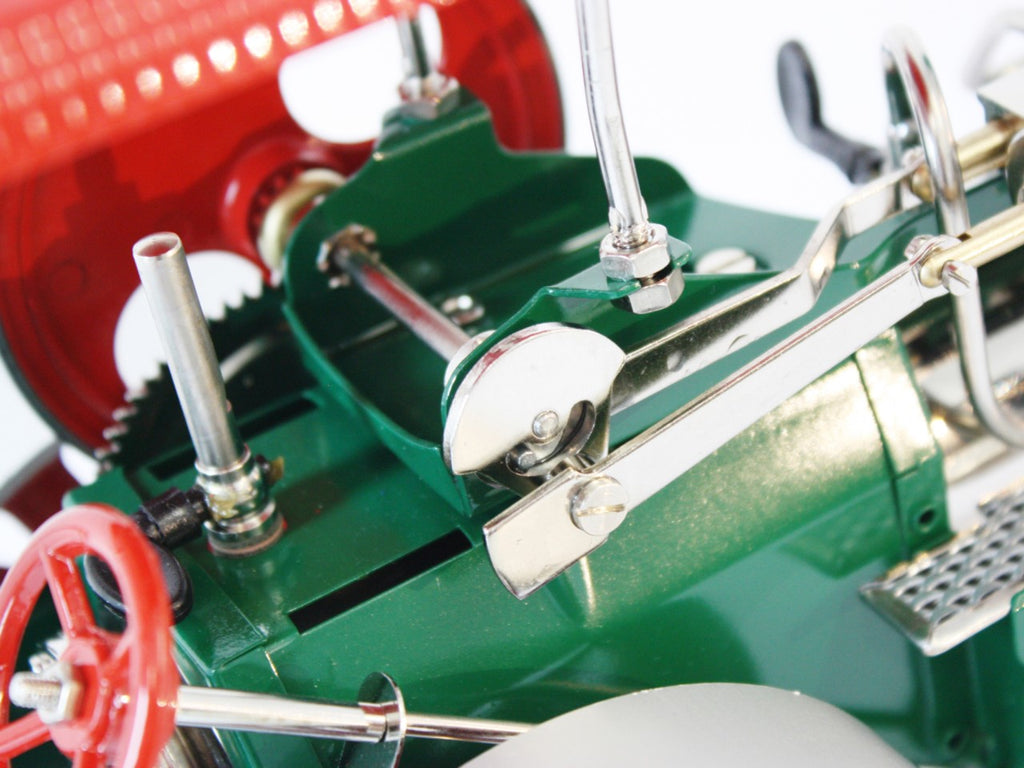

A catwalk, chain steering, and gear coupling are standard features of our Old Smoky. The coupling—operated by a rod to the left of the driver's cab—allows the steam roller to also be operated as a stationary steam engine. With its 230 cc boiler, the Old Smoky is powerful enough to pull accessories in mobile operation as well as drive models in stationary operation. The aluminum roller wheels of this steam roller are anodized and painted.
For indoor and outdoor use

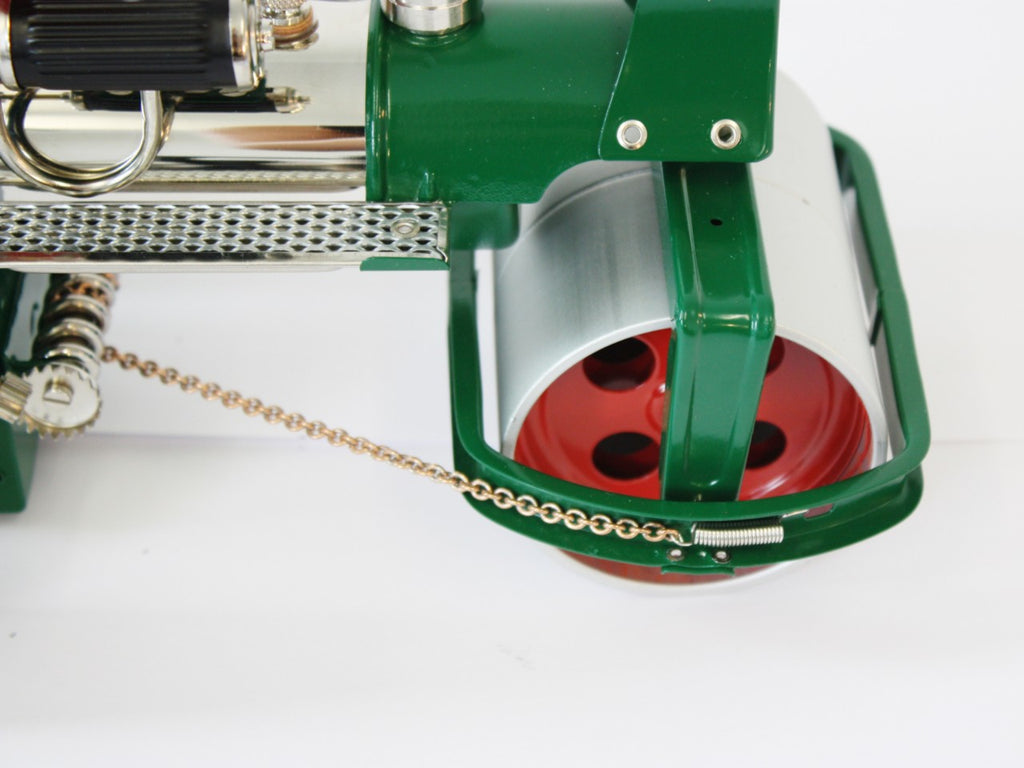

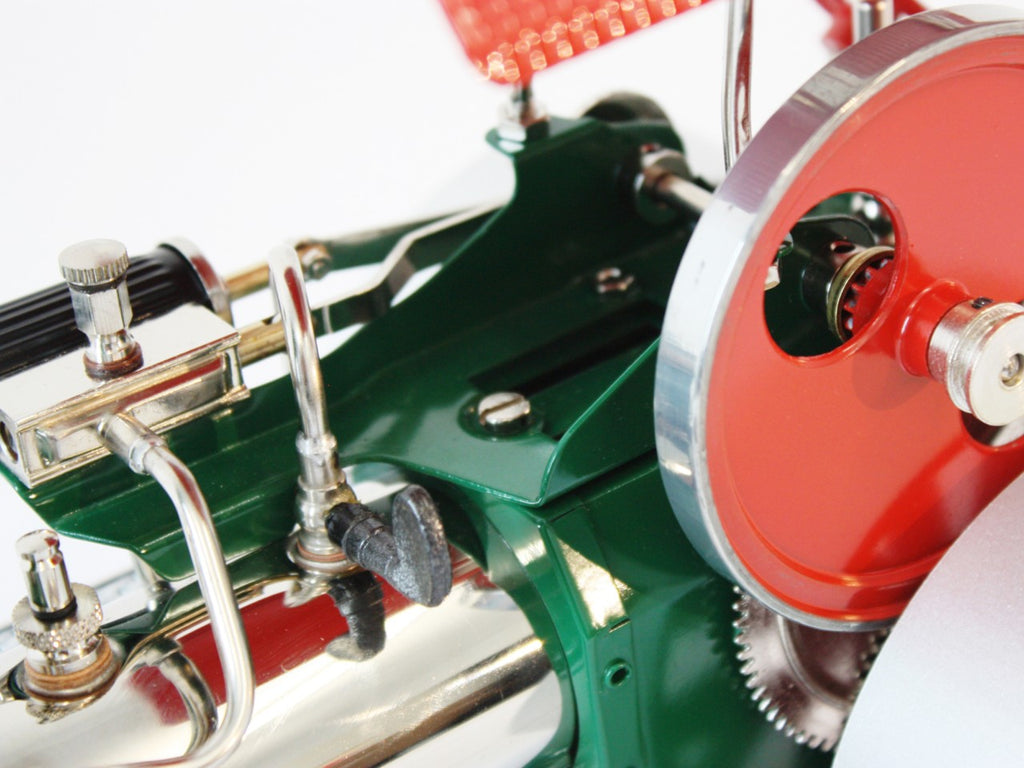

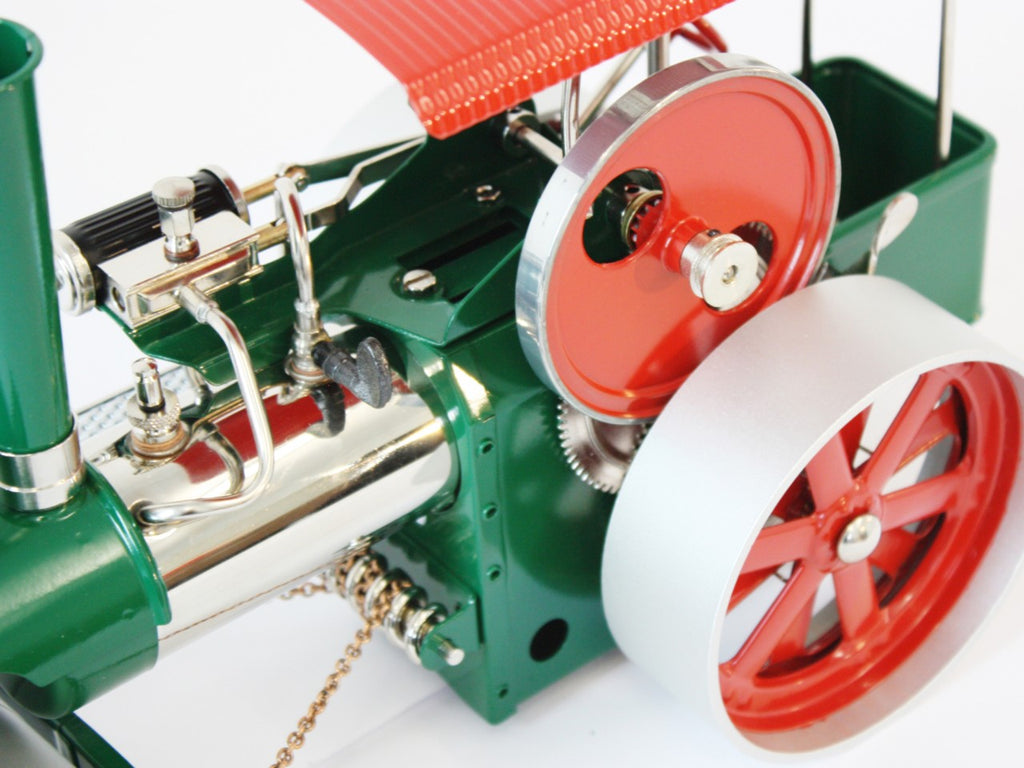

Our Wilesco D365 steam roller is suitable for both outdoor and indoor use. Since the Wilesco D375 has a bidirectional flywheel, it can drive forward and backward, and is steered by a timing chain. During operation, the steam roller's chimney emits authentic smoke. Running time with one load of original Witabs solid fuel is approximately 15 minutes. Running time may be slightly shorter when using other solid fuel brands.
A wonderful and highly recommended souvenir of old times for all steam engine fans.
This steam engine comes with 2 WITABS dry fuels, but please don't forget to refuel your D375 for optimal steaming pleasure.
Performance index
Performance Index 5
Base dimensions
further information
Spare parts
- 01843 Accessories complete in the bag
- 01660 Boiler with spring safety valve including glass
- 01575 Burner slide 80 mm
- 01951 Chimney
- 01765 Complete unit
- 01758 Crank disc with bolt screw
- 01729 Cylinder complete
- 01728 Cylinder cover
- 01889 Eccentric disc small
- 01679 Flywheel 80mm, with axle
- 01700 Front wheel 70 mm
- 01464 Gear with driver, nickel
- 01466 Gear, large with pinion, nickel
- 01629 Grub screws for line rollers (1 bag = 10 pieces)
- 01627 Line roller 14 mm
- 01544 Metal ring for water level glass D=27 mm
- 01875 Mounting cap for 4 mm axle, nickel-plated
- 01878 Mounting cap for 5 mm axle, nickel-plated
- 01500 Oiler attachment complete with M4 screw
- 01747 Piston connecting rod with screw
- 01745 Piston, diameter 9 mm
- 01699 Rear wheel 100 mm
- 01691 Roof complete, red
- 01520 Seals assortment M3 - M6
- 01719 Shut-off valve with plastic lever
- 01743 Slide rod with screw, diameter 5 mm - from 1990
- 01754 Slider connecting rod with screw
- 01513 Spring safety valve, from 1990 M 6 x 0.75 fine thread, nickel-plated
- 01817 Steam pipe, 2-part
- 01524 Steam whistle M 5 - thread
- 01800 Steering wheel complete with column
- 01797 Steering wheel, red
- 01795 Tension spring for steering
- 01540 Water level glass 27 mm with screws, nuts and seals
- 01789 Worm with chain and gear ring with tension spring
- 01793 coupling
- 01881 fireplace base
