In stock
Steam engine D20
Sale price
€369,90
Regular price
€415,20
Taxes included.
Shipping calculated at checkout.
Pickup currently not available

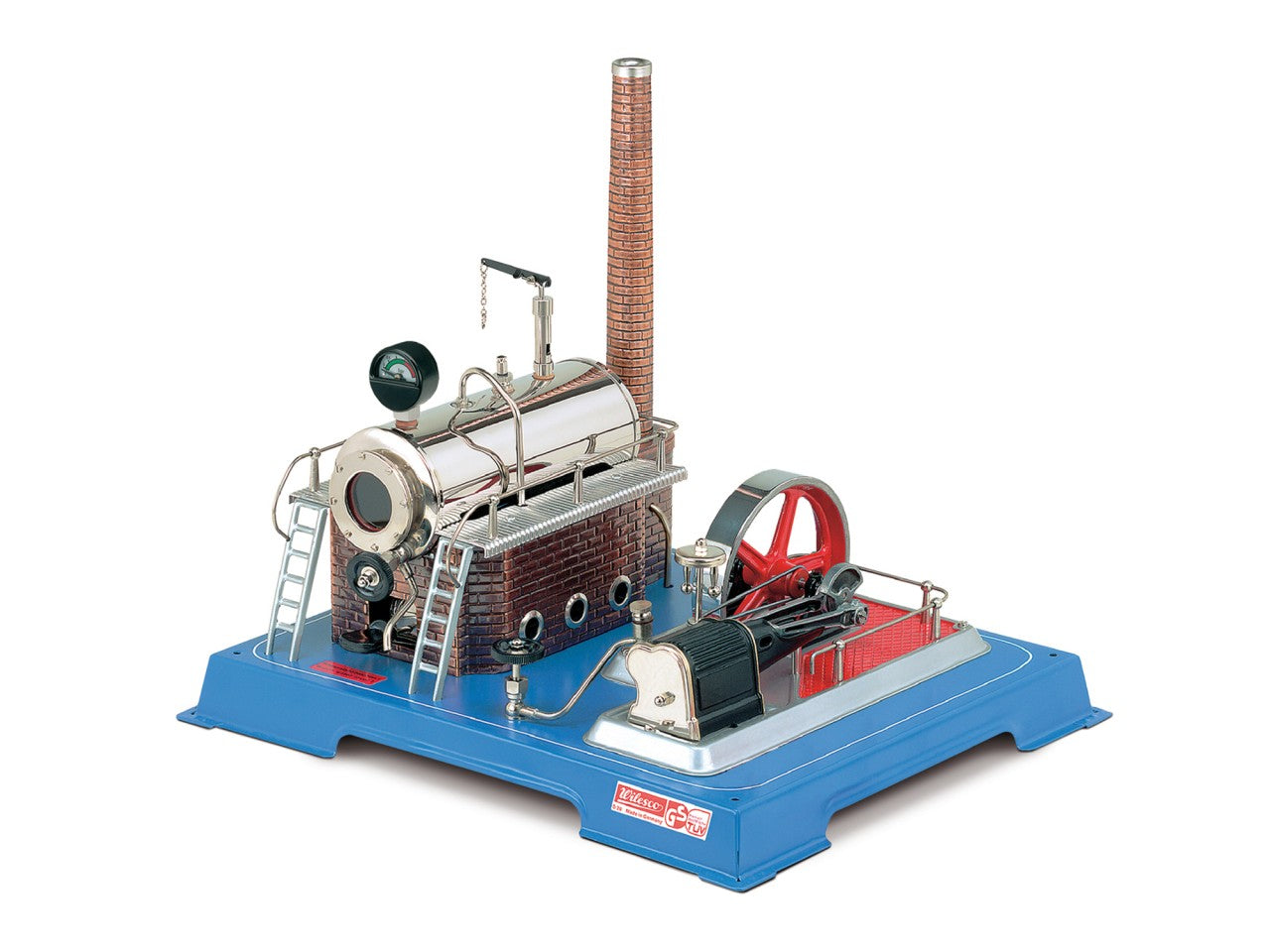

Wilesco steam engine D20
This stationary steam engine is the most commonly produced engine in the WILLESCO range. The 6.5 x 16.5 cm boiler has a volume of 500 cc. The pressure gauge allows for continuous monitoring of the steam pressure, and the drain cock allows for the removal of any residual water from the boiler after operation.
Our D20 is a model steam engine with considerable power, ideal for operating larger model layouts. You'll find a wide selection of suitable models here in our shop. Its authentically steaming chimney, whose steam outlet can be controlled via the steam valve, is also particularly fun to use.
Like all Wilesco steam engine models, the D20 is "Made in Germany" and, with sufficient oiling and careful attention to the boiler level, will purr reliably even after many years.
Performance index
Performance Index 20
Base dimensions
350 mm x
290 mm x
320 mm
further information
Spare parts
- 01838 Accessories complete in the bag
- 01643 Bearing block, small, 50x11x30 mm
- 01658 Boiler with spring safety valve including glass and fastening
- 01577 Burner slide 120 mm
- 01618 Centrifugal regulator
- 01622 Centrifugal regulator base
- 01563 Chimney
- 01774 Complete unit (exhaust steam to the right)
- 01440 Complete unit, exhaust steam to the chimney
- 01956 Condensate tray (boiler house)
- 01623 Condensation tray (base plate)
- 01761 Crank disc with bolt screw, 30 mm
- 01742 Cylinder cover
- 01890 Eccentric disc large
- 01690 Flywheel 100mm, with axle
- 01629 Grub screws for line rollers (1 bag = 10 pieces)
- 01595 Handwheel, loose, black
- 01636 Line roller / double line roller 25 mm
- 01551 Metal ring for water level glass D=37 mm
- 01503 Oiler screw, nickel-plated M 6
- 01506 Oiler, steam jet oiler with pipe/screw
- 01752 Piston connecting rod with screw
- 01746 Piston, diameter 13 mm
- 01528 Pressure gauge with bottom connection M 6, D=35 mm, including adapter piece 01529
- 01885 Railing supports, nickel-plated, with nuts
- 01520 Seals assortment M3 - M6
- 01599 Seals for steam shut-off valve Art. No. 01600,01601
- 01744 Slide rod 6 mm with screw
- 01757 Slider connecting rod with screw
- 01513 Spring safety valve, from 1990 M 6 x 0.75 fine thread, nickel-plated
- 01603 Steam shut-off valve - lower part / valve body - lower part
- 01600 Steam shut-off valve/drain valve with valve body lower part and collar nut/solder ring, nickel-plated
- 01593 Steam shut-off valve/drain valve without valve body - lower part
- 01517 Steam whistle with chain hoist, M6 thread
- 01989 Water drain valve with valve body lower part, drain pipe, flange nut/solder ring
- 01549 Water level glass, 4 mm thick, D=37 mm, with screws, nuts (nickel-plated)
- 01740 cylinder
- 01811 steam pipe
