Steam engine D222 electric
Sale price
€759,90
Regular price
€852,70
Taxes included.
Shipping calculated at checkout.
Pickup currently not available

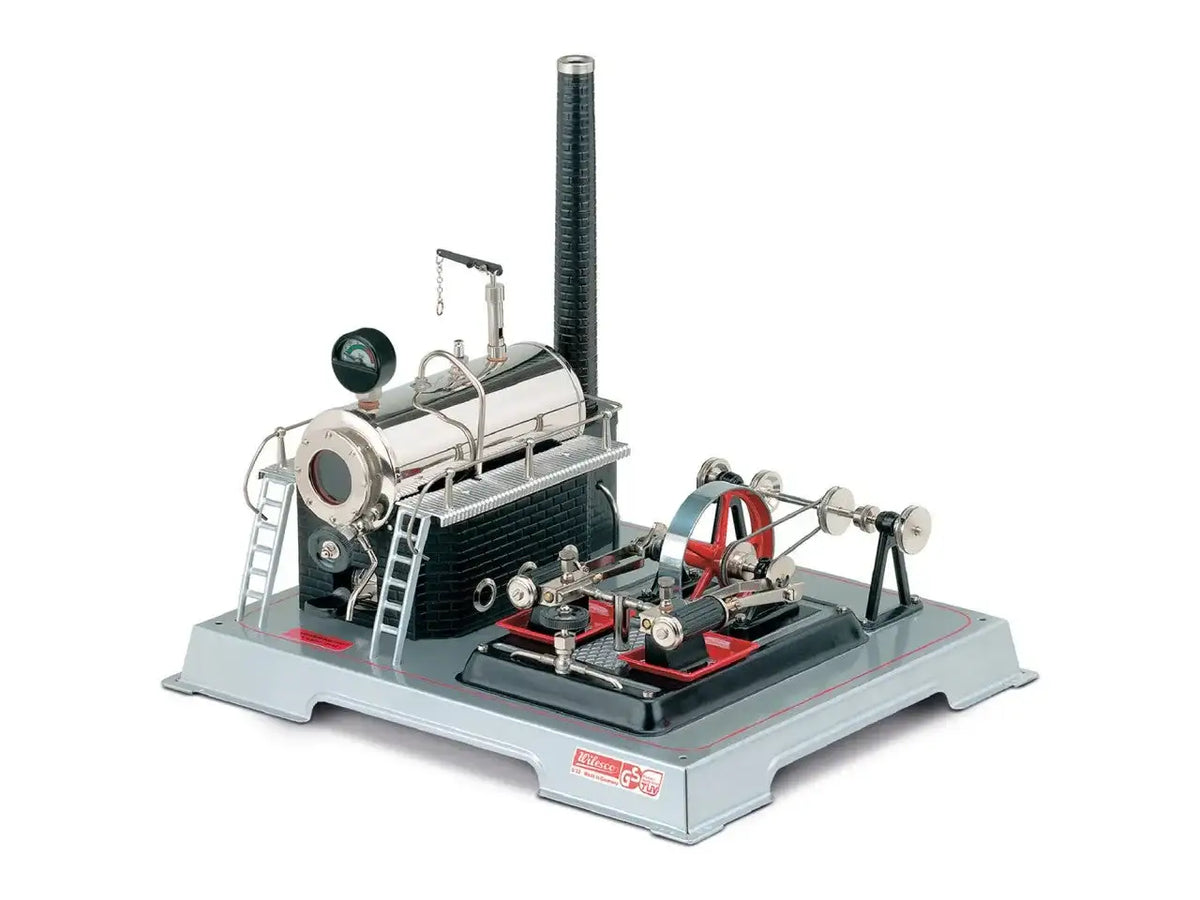

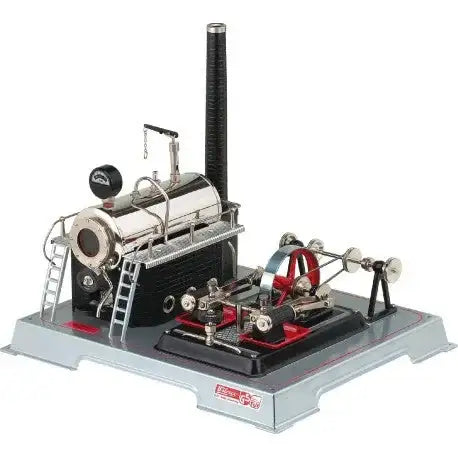

Wilesco steam engine D222 electric

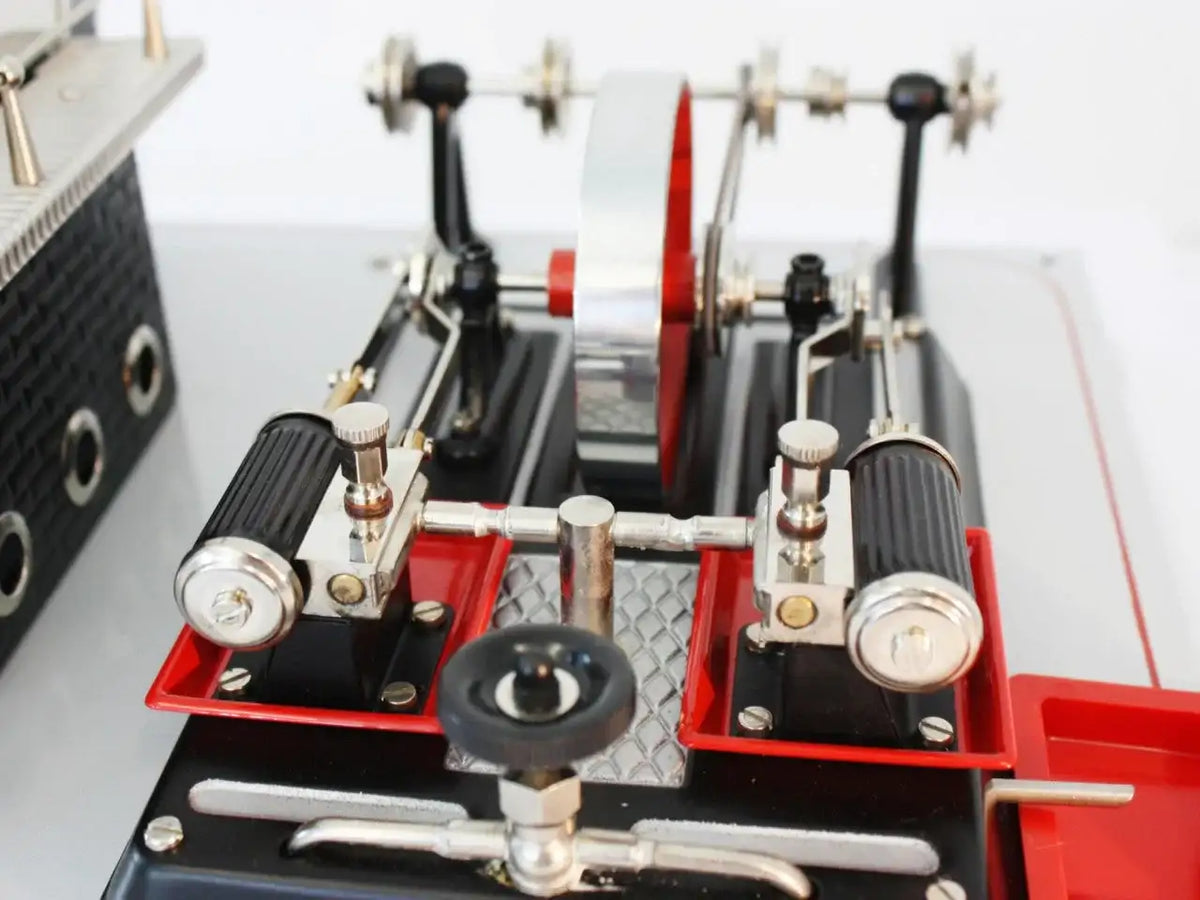

One of the most powerful engines in the WILLESCO range is this self-starting two-cylinder steam engine. The boiler, measuring 6.5 x 16 cm, has a volume of 500 cc. The power unit is mounted on a raised base. The two cylinders are controlled by a common steam shut-off valve. As an optional extra, the engine is equipped with a transmission with five pulleys in three different sizes.
Performance index
Performance Index 20
Base dimensions
350 mm x
290 mm x
320 mm
further information
Spare parts
- 01839 Accessories complete in the bag
- 01643 Bearing block, small, 50x11x30 mm

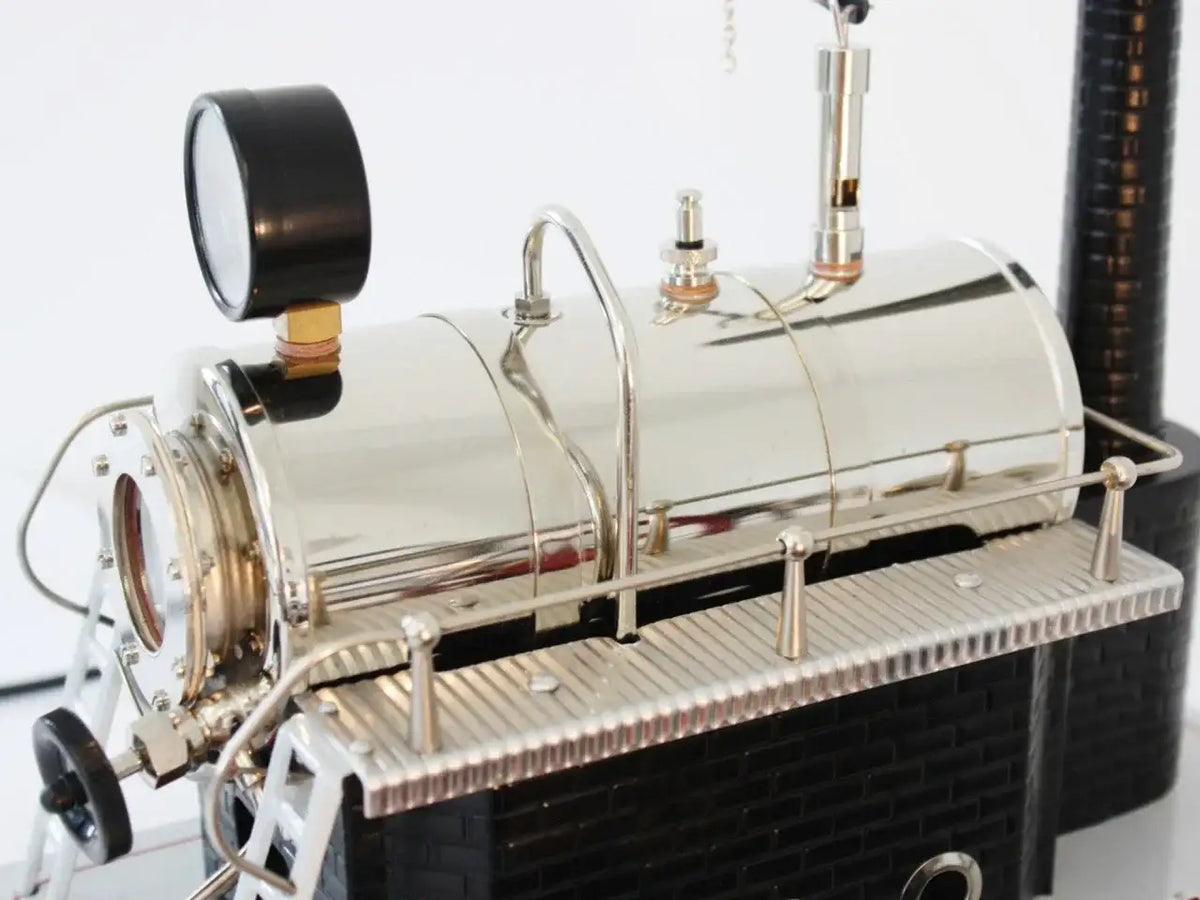

- 01658 Boiler with spring safety valve including glass and fastening
- 01577 Burner slide 120 mm
- 01622 Centrifugal regulator base
- 01564 Chimney
- 01775 Complete unit
- 01956 Condensate tray (boiler house)
- 01623 Condensation tray (base plate)
- 01758 Crank disc with bolt screw
- 01734 Cylinder complete, left
- 01733 Cylinder complete, right
- 01728 Cylinder cover
- 01889 Eccentric disc small

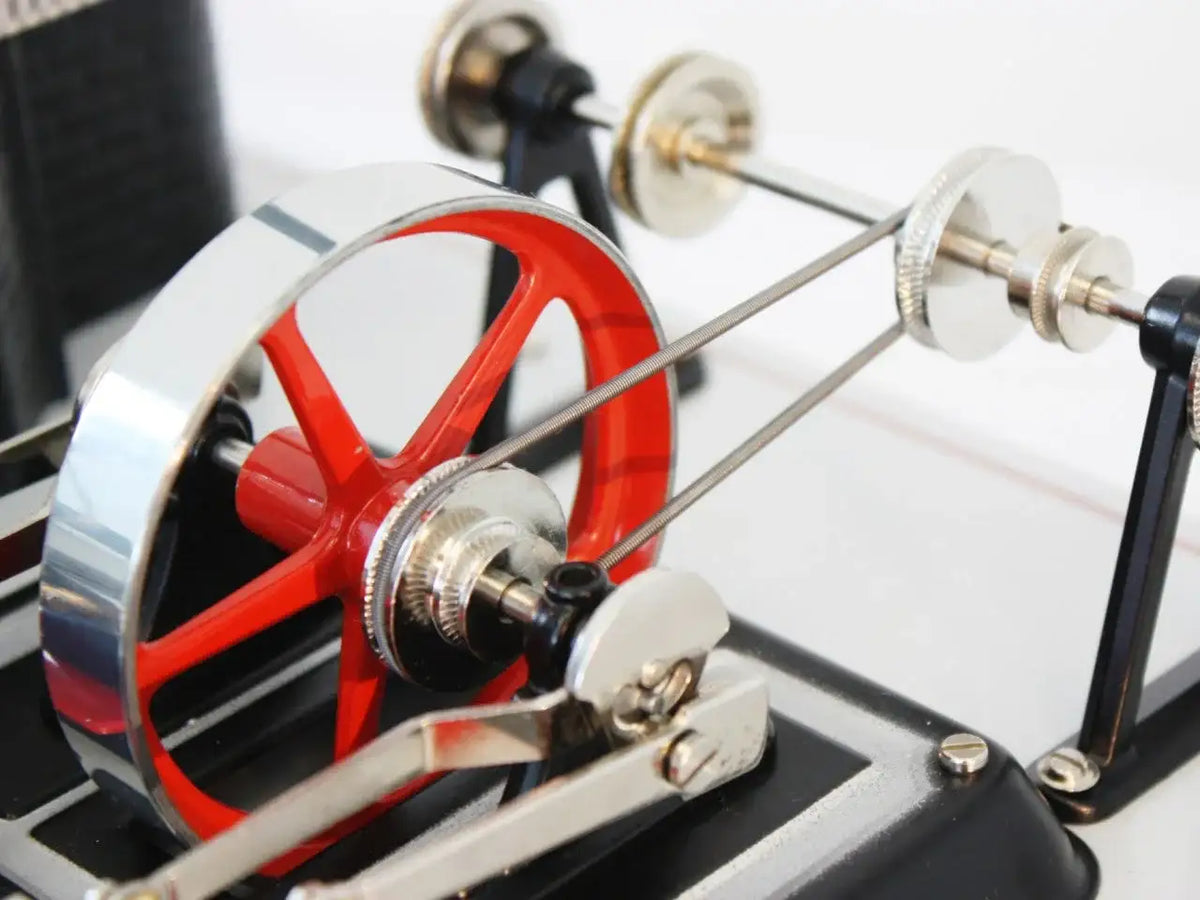

- 01681 Flywheel 80mm, with axle
- 01629 Grub screws for line rollers (1 bag = 10 pieces)
- 01595 Handwheel, loose, black
- 01636 Line roller / double line roller 25 mm
- 01551 Metal ring for water level glass D=37 mm
- 01500 Oiler attachment complete with M4 screw
- 01747 Piston connecting rod with screw
- 01745 Piston, diameter 9 mm
- 01528 Pressure gauge with bottom connection M 6, D=35 mm, including adapter piece 01529
- 01885 Railing supports, nickel-plated, with nuts
- 01743 Slide rod with screw, diameter 5 mm - from 1990
- 01753 Slider connecting rod with screw
- 01604 Steam shut-off valve - lower part / valve body - lower part
- 01602 Steam shut-off valve/drain valve with valve body lower part and collar nut/solder ring
- 01593 Steam shut-off valve/drain valve without valve body - lower part
- 01517 Steam whistle with chain hoist, M6 thread
- 01989 Water drain valve with valve body lower part, drain pipe, flange nut/solder ring
- 01549 Water level glass, 4 mm thick, D=37 mm, with screws, nuts (nickel-plated)
- 01813 steam pipe
