Steam lorry D320
Pickup currently not available
Wilesco D320 remote-controlled steam lorry

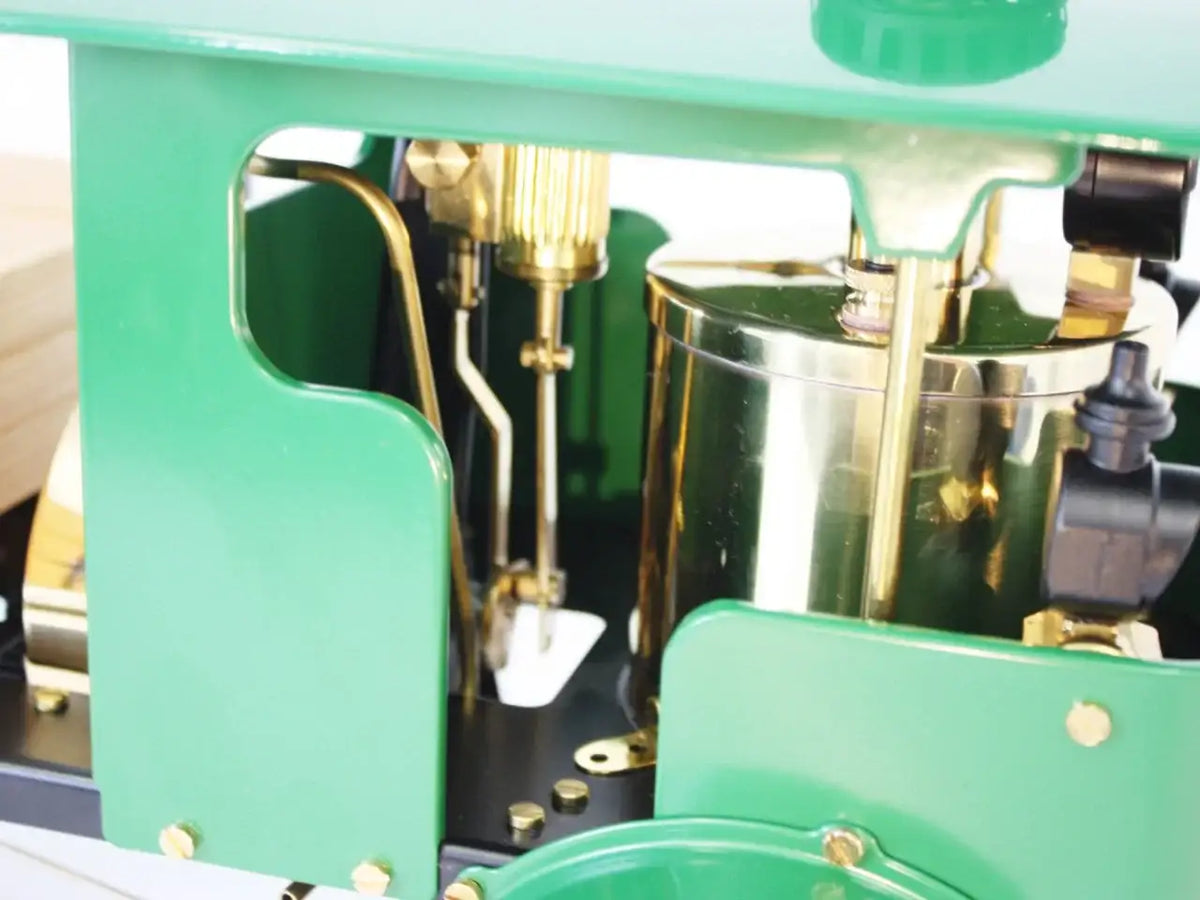

This nostalgic truck with cable remote control is a miniature model of a 1915 truck series. At that time, transporting goods with such vehicles was more leisurely and had nothing in common with today's just-in-time deliveries. This flatbed truck, modeled after historical prototypes, features a fully functional steam engine. The boiler, specially designed for this mobile steam engine model, and the single-cylinder, double-acting power unit are housed in the driver's cab. The roof of the driver's cab is held in place with a magnetic lock and can be easily removed to fill the upright steam boiler with water. The burner slide valve on the Wilesco D320 steam truck is located between the wheels of the front axle. Steering (right/left) is controlled by a cable remote control located behind the truck cab. Note: Forward and reverse steering is not possible. The wooden bed can be tilted backward for unloading.
Performance index
Performance Index 0
Base dimensions
Weight
further information
Spare parts
- 01641 Bevel gear, D = 17 mm
- 01404 Boiler with spring safety valve including glass
- 01578 Burner slide brass, handle black 80 mm
- 01448 Chimney
- 01780 Complete unit
- 01759 Crank disc with bolt screw
- 01978 Cylinder cover

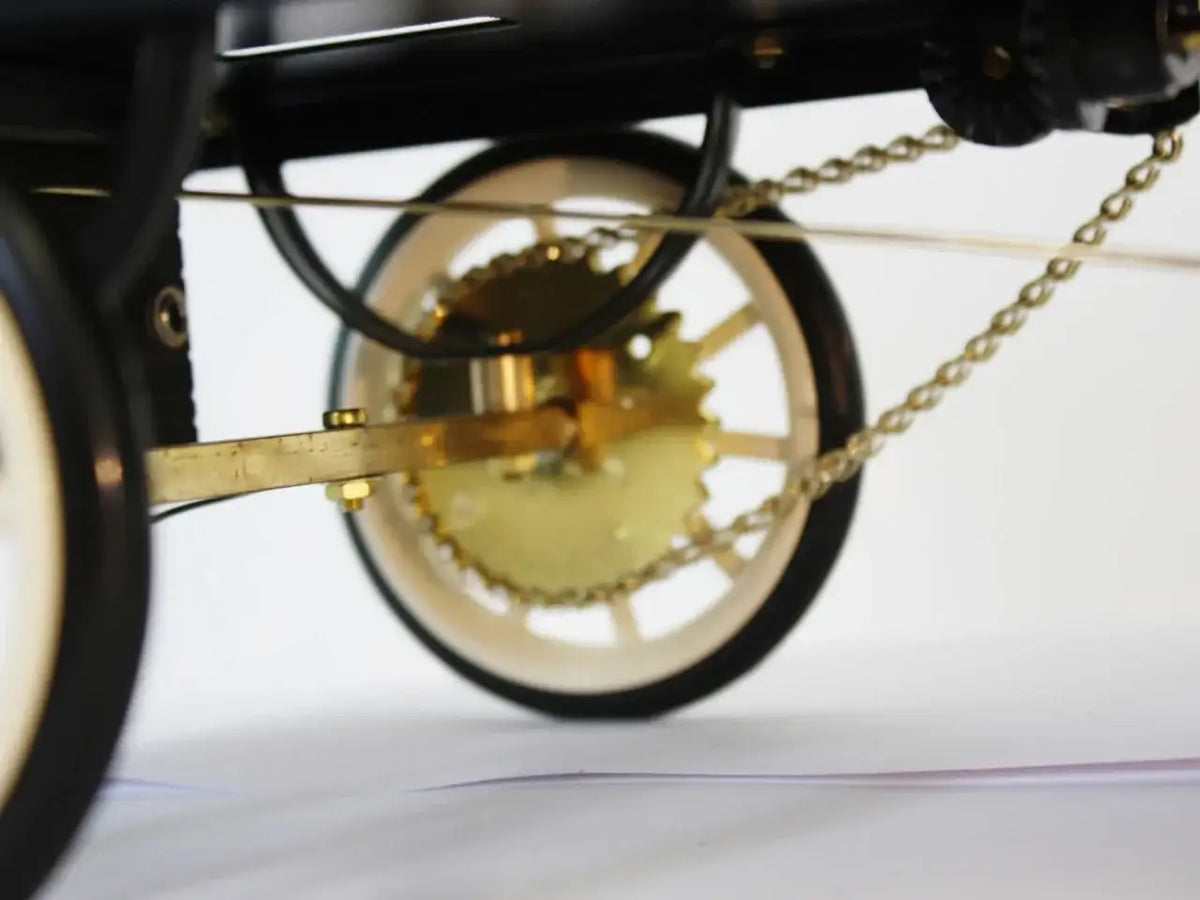

- 01917 Drive chain, 27 cm (56 links)
- 01462 Drive gear with axle
- 01889 Eccentric disc small
- 01686 Flywheel brass, with axle
- 01933 Gear D51 mm, 30 teeth, bore 4 mm
- 01902 Lamp/Headlight

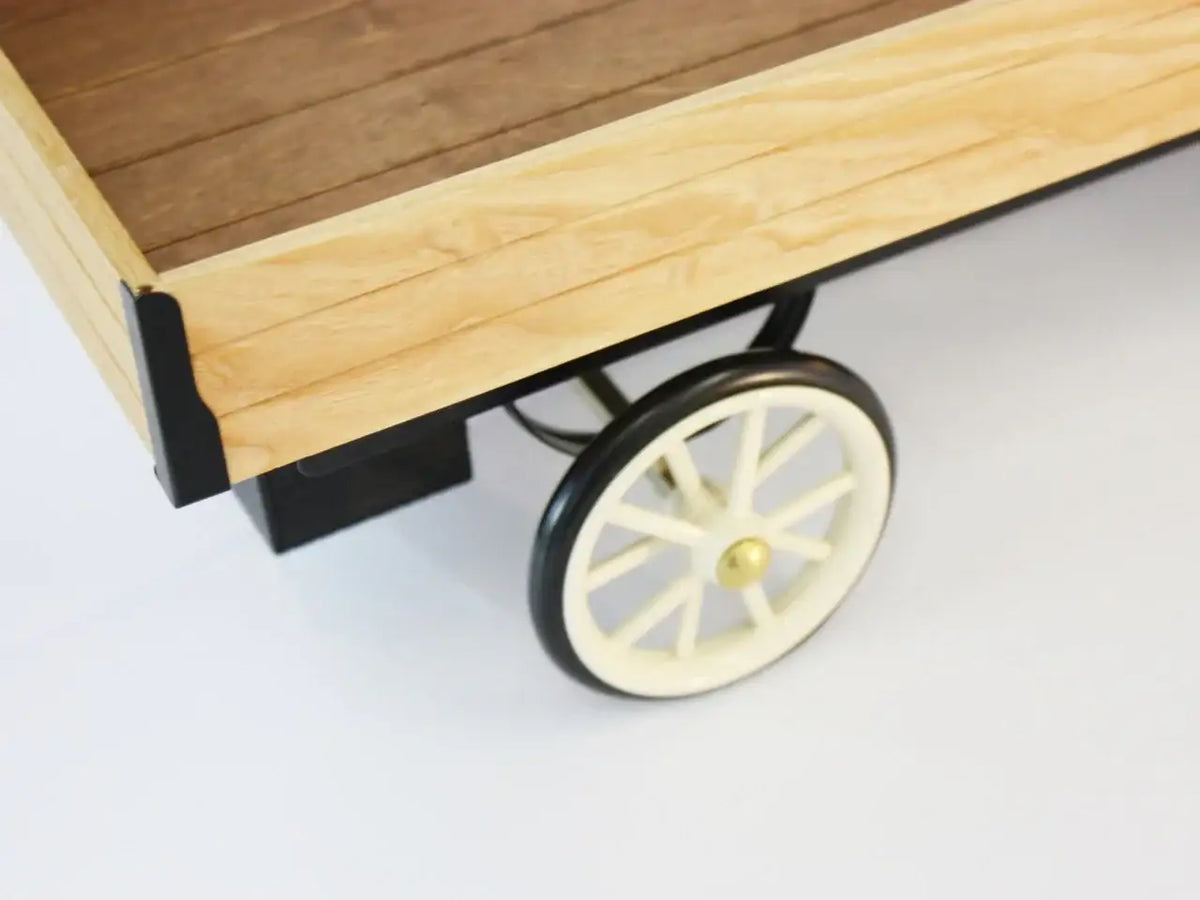

- 01450 Loading area (wooden platform) D320
- 01437 Metal ring with water level glass
- 01876 Mounting cap for 4 mm axle, brass
- 01879 Mounting cap for 5 mm axle, brass
- 01502 Oiler attachment complete with screw M4, brass bare
- 01510 Oiler elbow, brass
- 01748 Piston connecting rod with screw

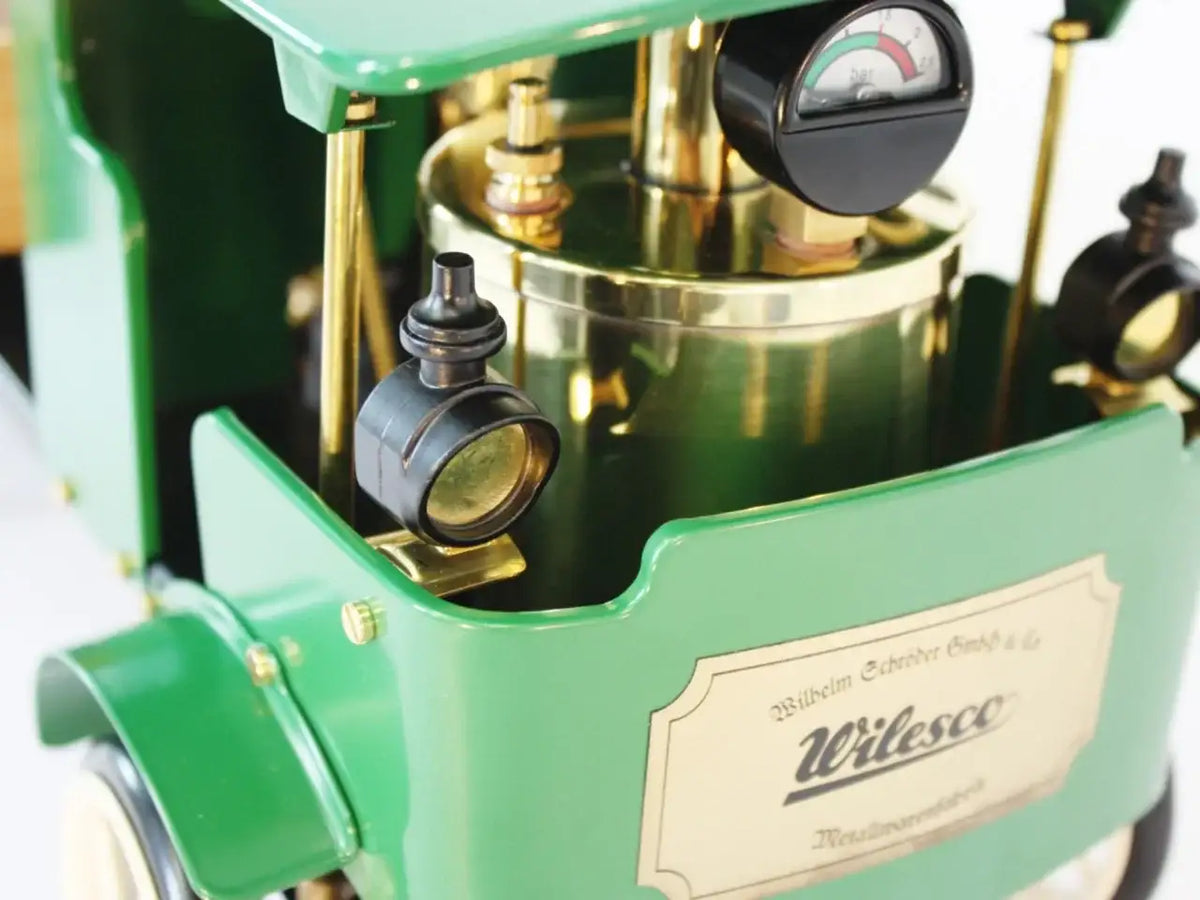

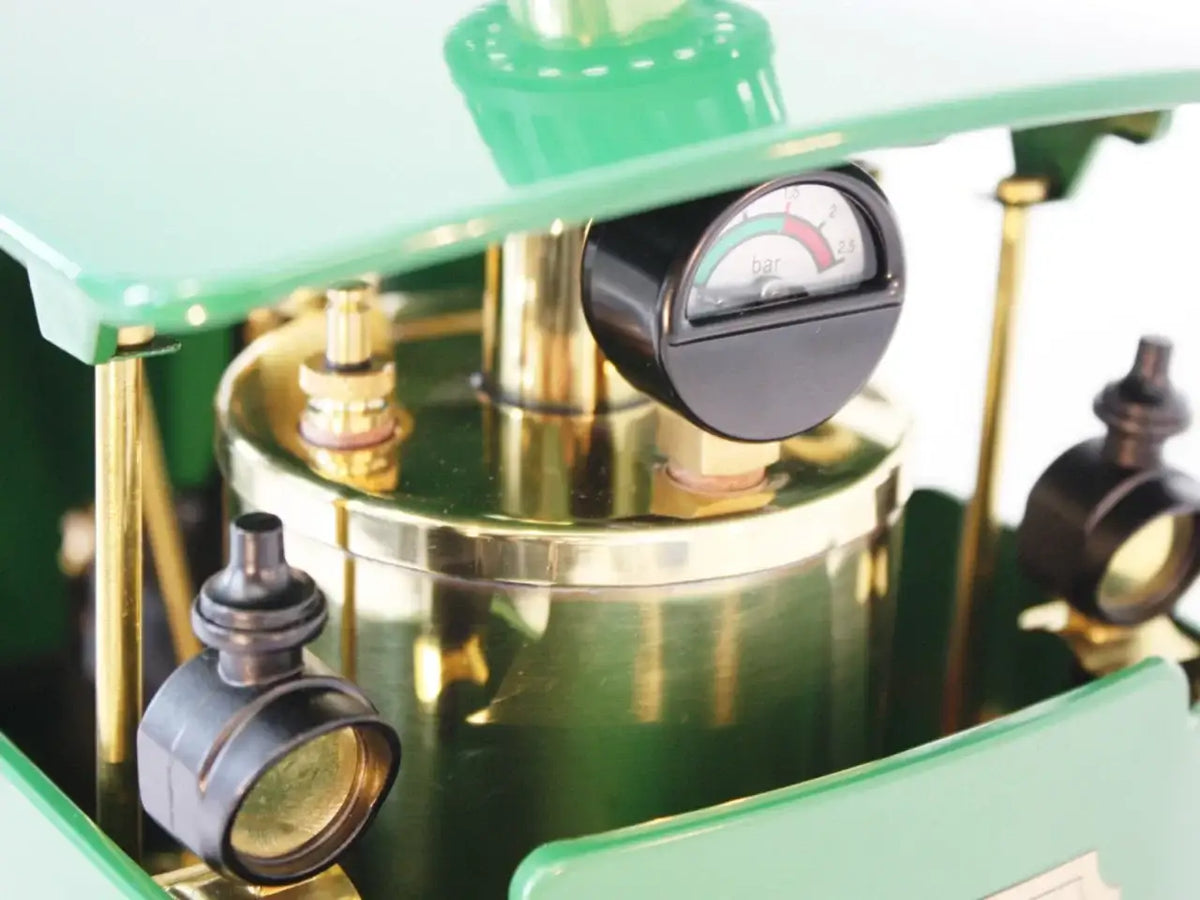

- 01938 Pressure gauge 35 mm, rear M6 thread + adapter 01529
- 01937 Pressure gauge base MS, 12x12 mm internal thread top M6 x 0.75, side M6 with spring safety valve and seals
- 01449 Roof
- 01520 Seals assortment M3 - M6
- 01743 Slide rod with screw, diameter 5 mm - from 1990
- 01750 Slider connecting rod with screw
- 01463 Small drive gear for flywheel axle
- 01514 Spring safety valve, from 1990 M 6 x 0.75 fine thread, brass
- 01472 Steam pipe 2-part
- 01723 Steam regulator with plastic handle

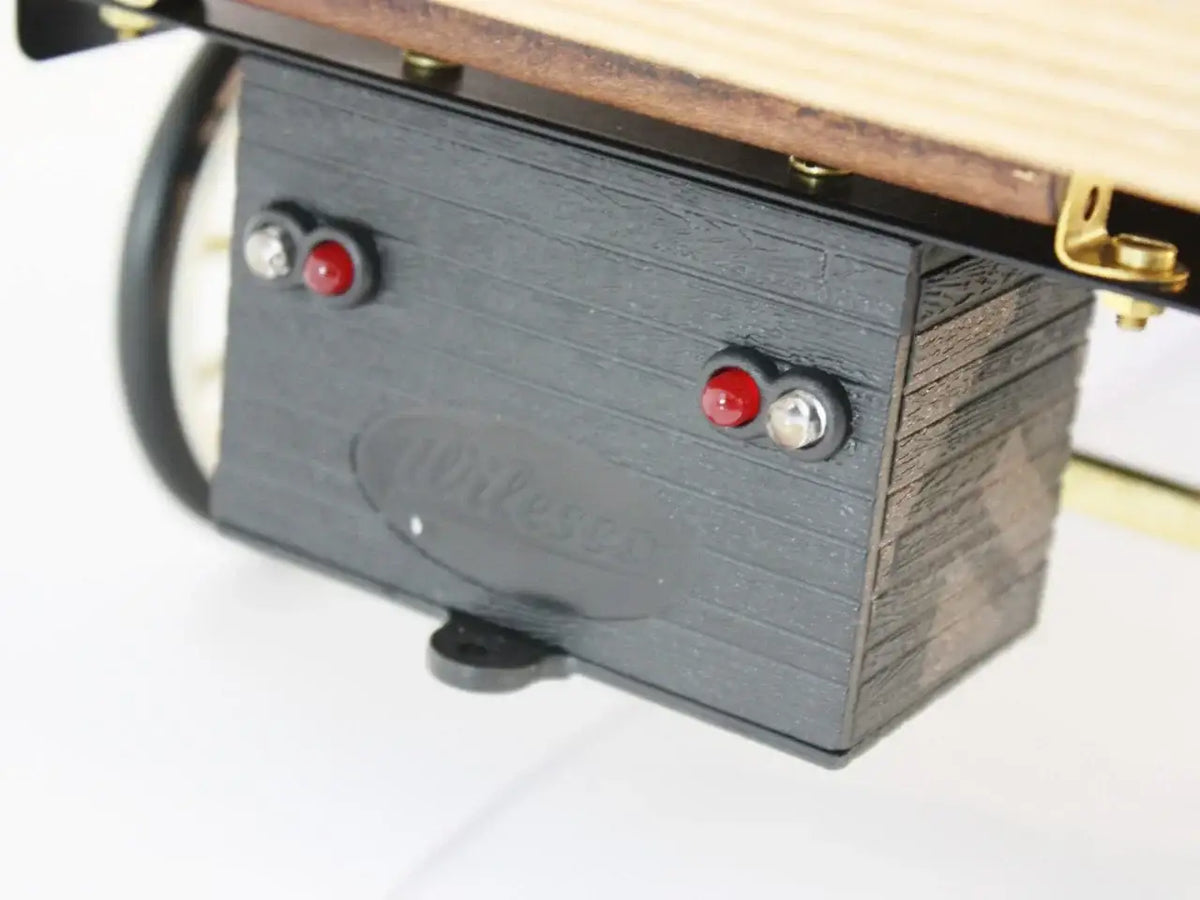

- 01473 Steering wire (RC control)
- 01447 Wheel with rubber tire, 84 mm outside
