Foden Steam Lorry D310
Pickup currently not available
True-to-original replica of the Foden truck "Mighty Atom"
The D310 model was added to the Wilesco product range in 2013. It is a faithful replica of a truck from the English brand Foden, also known as the "Mighty Atom." Foden manufactured steam-powered trucks between 1896 and 1930, all of which had a payload of over 3 tons. The Mighty Atom was one of these models.

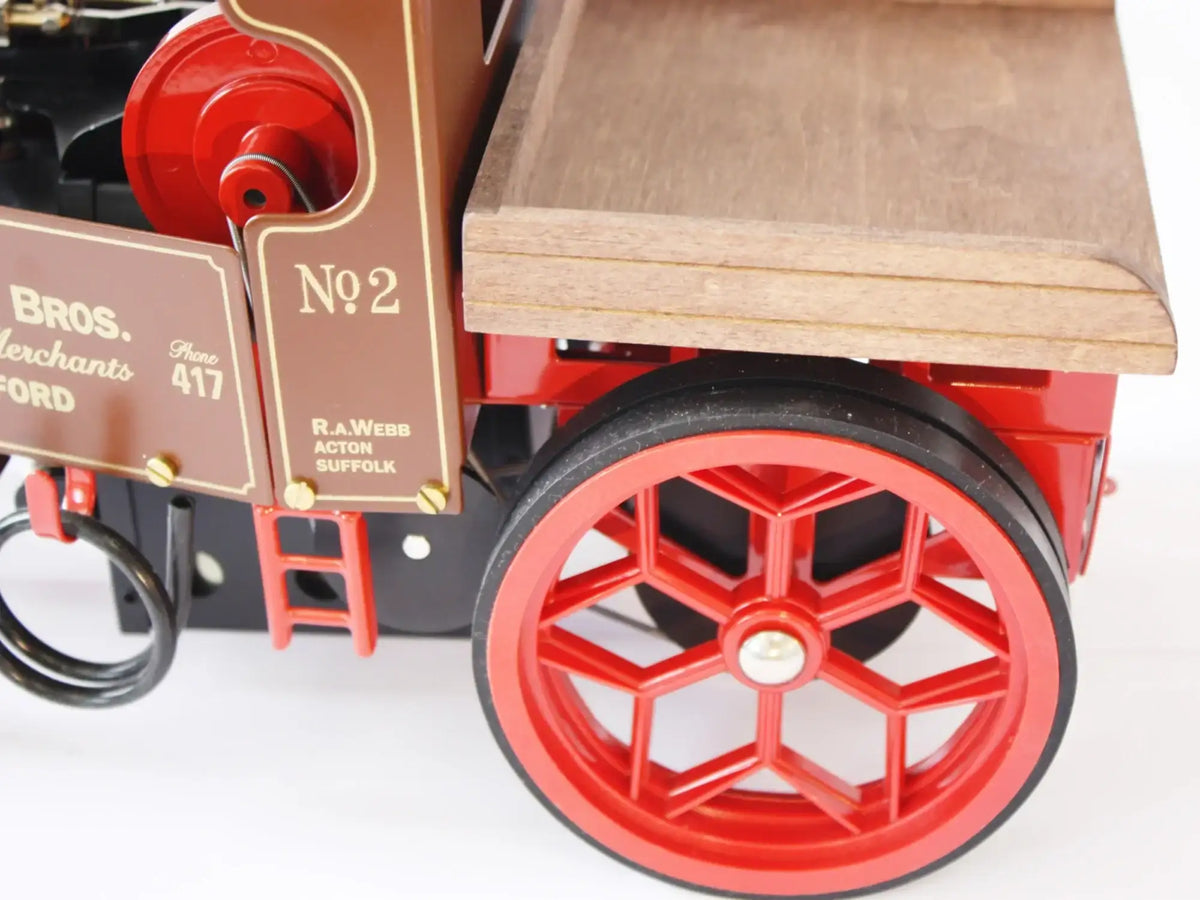

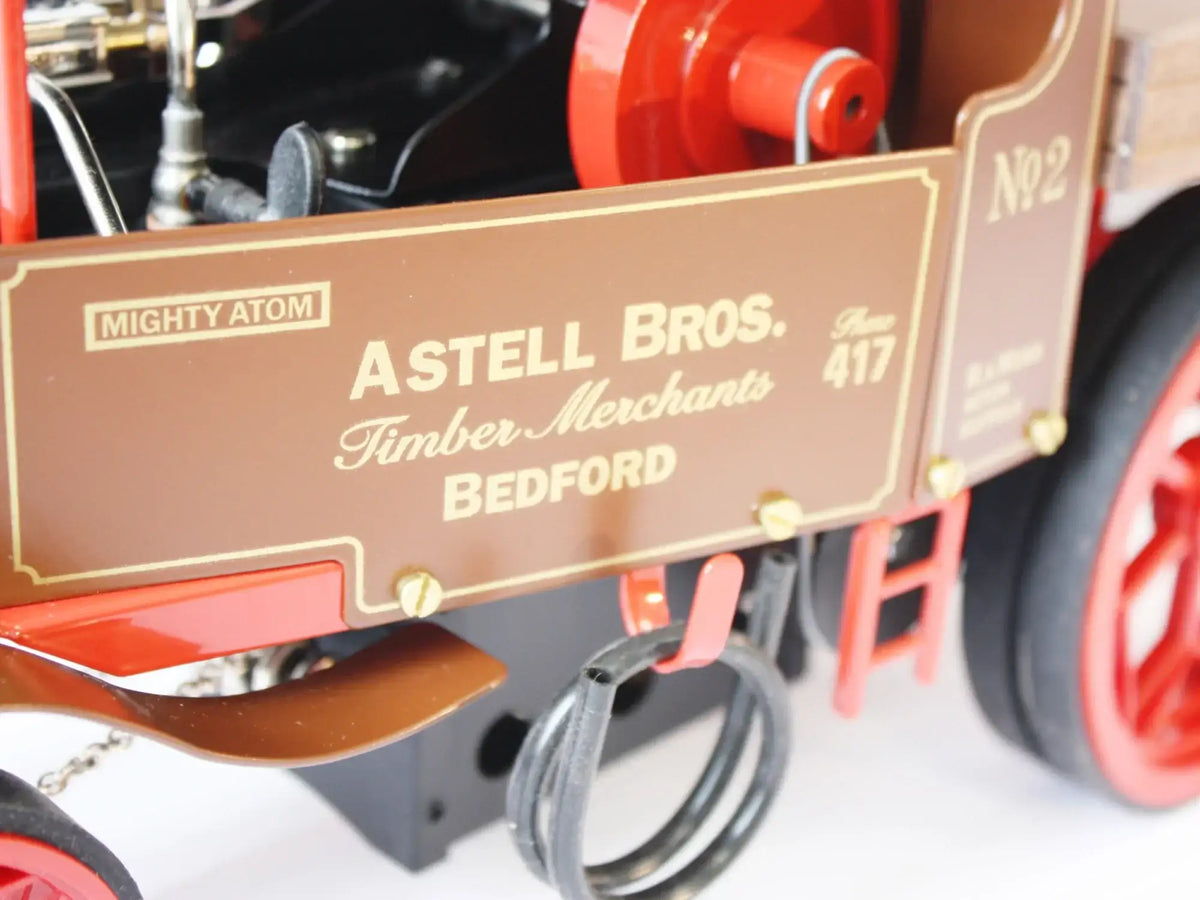

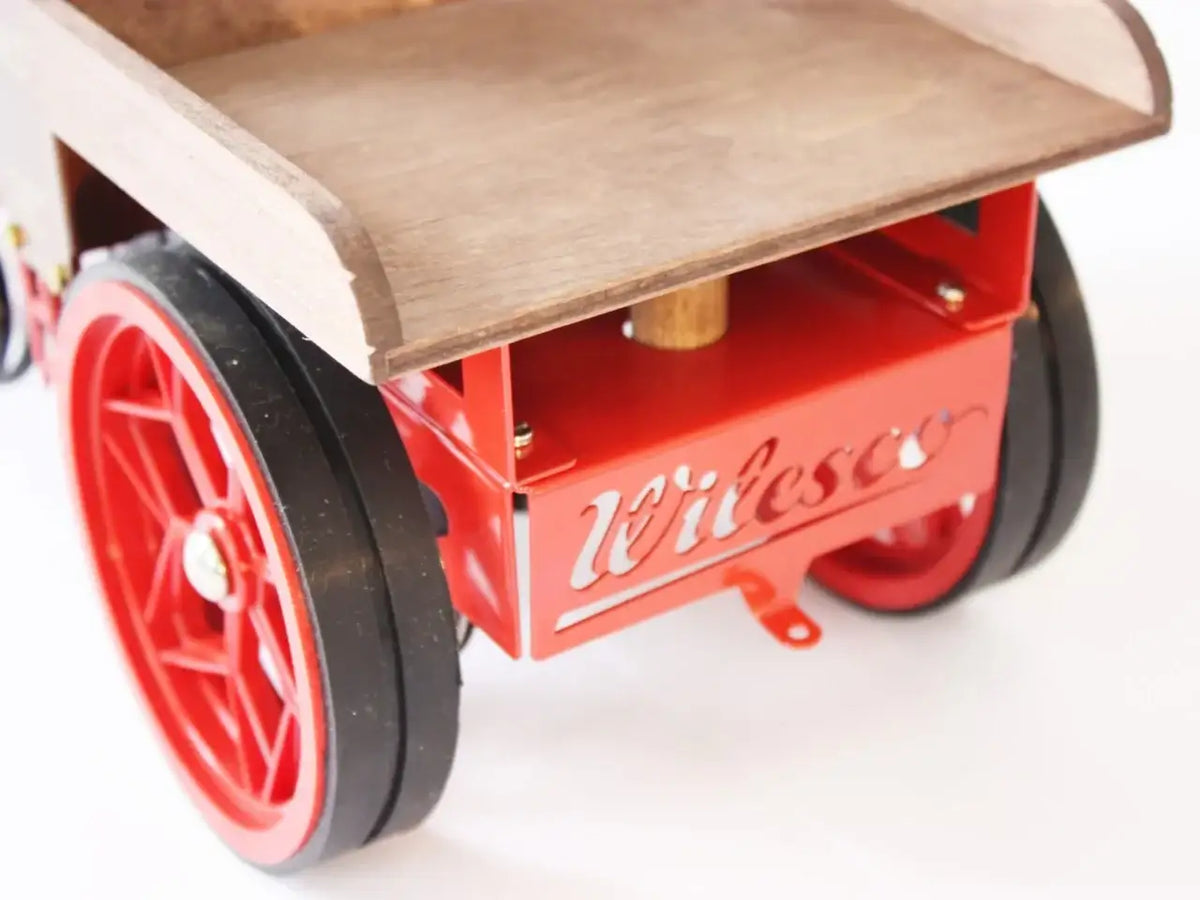

The delicate spoked wheels, the wooden platform, and the gold-printed cab are just a few of the features of this beautiful model. The chassis of the D310 features the Wilesco logo and the model designation.
Powerful drive through D405 components

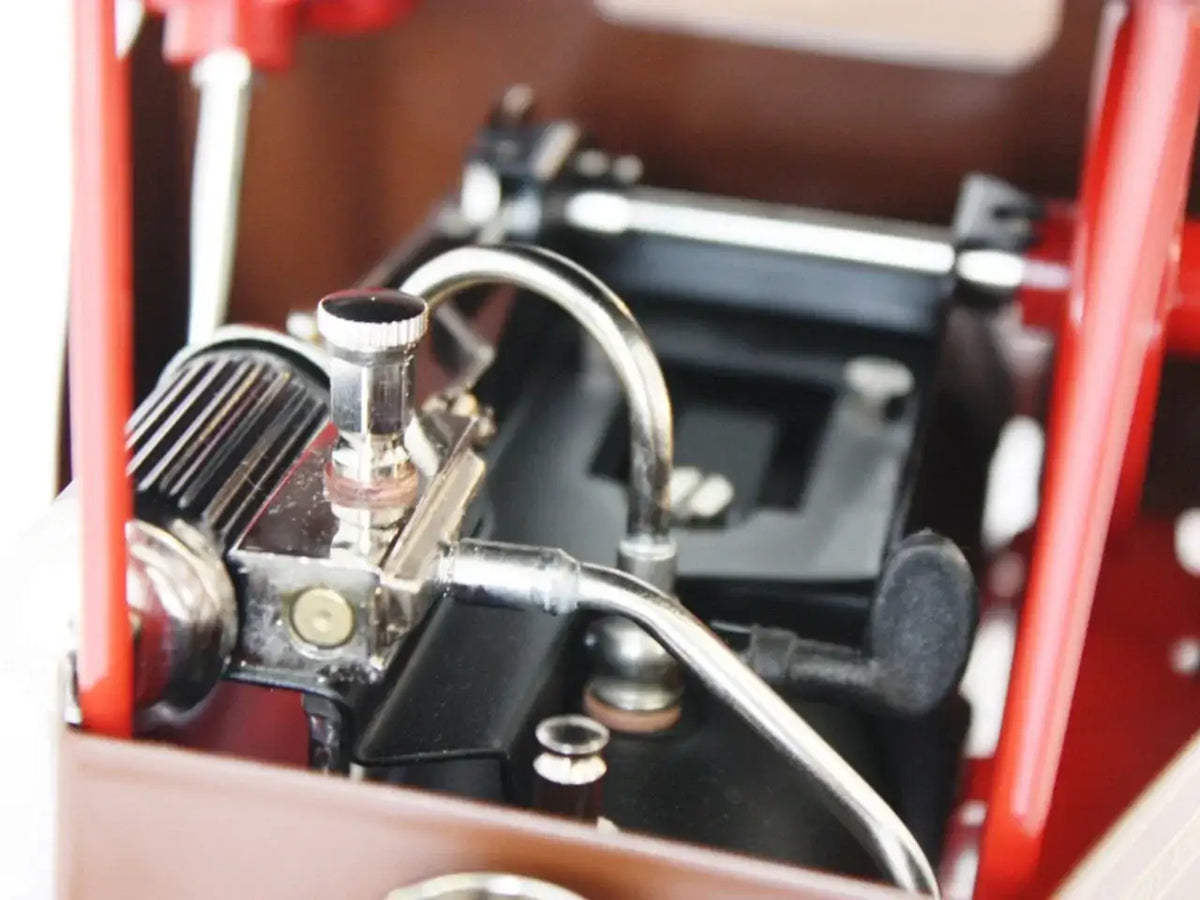

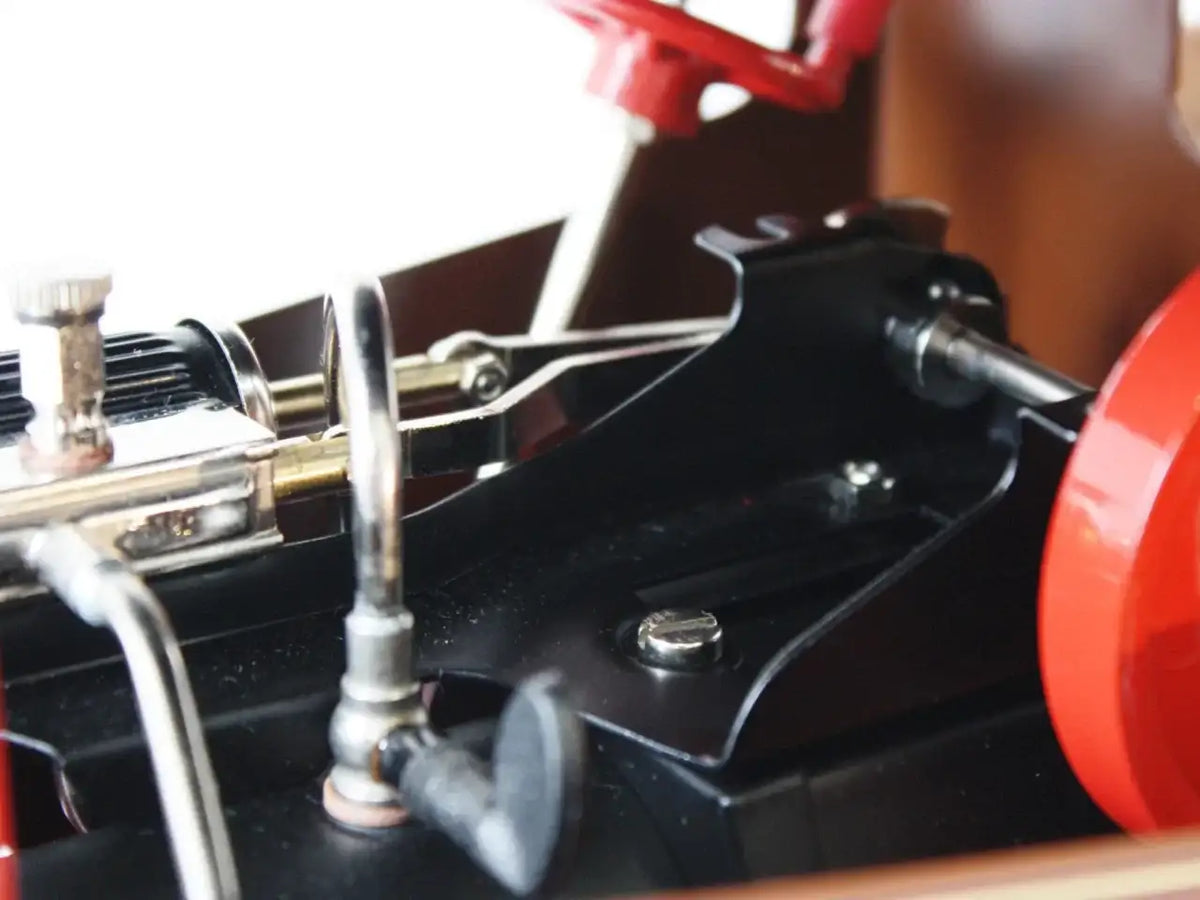

To ensure the Foden truck's powerful drive, this model features the boiler house, boiler, cylinders, pistons, and steam pipes of the D405. These components were painted black specifically for the Mighty Atom. The steam truck's flywheel has a diameter of 55 mm. The truck's double-reduction belt drive operates on the rear axle.
The vehicle is delivered fully assembled, ready for immediate use and can be controlled via the steering wheel.
Performance index
Performance Index 0
Base dimensions
further information
Spare parts
- 01843 Accessories complete in the bag
- 01665 Black boiler with nickel spring safety valve
- 01575 Burner slide 80 mm
- 01758 Crank disc with bolt screw
- 01729 Cylinder complete
- 01728 Cylinder cover
- 01307 Drive spiral
- 01889 Eccentric disc small
- 01474 Flywheel 80 mm, with axle
- 01300 Front wheel, 75 mm, 2-way
- 01308 Lamp/Headlight
- 01941 Line roller, aluminum, black 60 mm
- 01305 Loading area (wooden platform)
- 01546 Metal ring, black D=27 mm
- 01875 Mounting cap for 4 mm axle, nickel-plated
- 01500 Oiler attachment complete with M4 screw
- 01747 Piston connecting rod with screw
- 01745 Piston, diameter 9 mm
- 01301 Rear wheel, left / drive, 105 mm
- 01302 Rear wheel, right
- 01475 Roof complete, black
- 01520 Seals assortment M3 - M6
- 01719 Shut-off valve with plastic lever
- 01743 Slide rod with screw, diameter 5 mm - from 1990
- 01754 Slider connecting rod with screw
- 01513 Spring safety valve, from 1990 M 6 x 0.75 fine thread, nickel-plated
- 01817 Steam pipe, 2-part
- 01800 Steering wheel complete with column
- 01797 Steering wheel, red
- 01795 Tension spring for steering
- 01316 Worm with chain and gear ring, long, (nickel) with tension spring
- 01303 Worm with chain and gear ring, short, (nickel) with tension spring
- 01476 aggregate
- 01881 fireplace base
- 01567 fireplace, black
